SERVICES
OUR SERVICES
STEEL DETAILING:

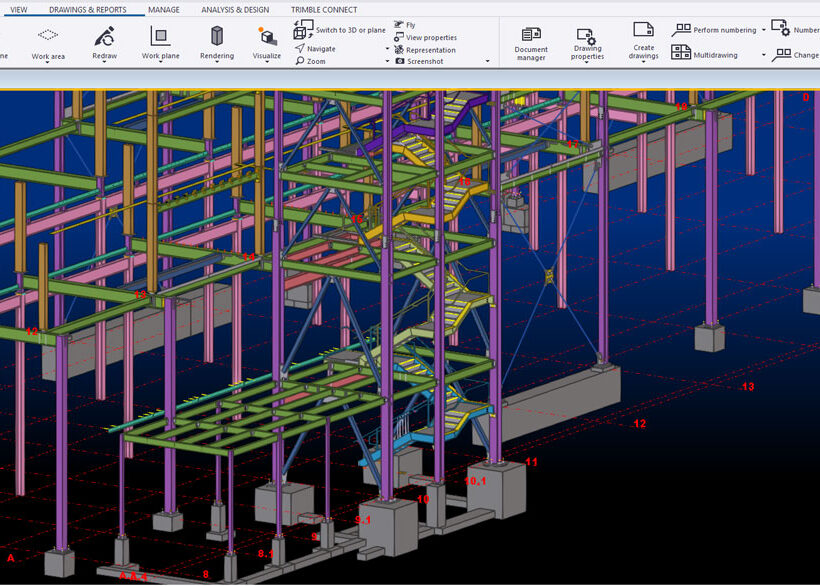

- Computerized structural and Miscellaneous steel detailing 2D and 3D BIM (Building Information Modeling) using the most advanced software in the industry as Tekla structures and Autocad.
- Anchor bolt layout plans.
- Erection framing plans and steel connection details.
- Fully detailed shop fabrication drawings with BOM.
- Reports such as bill of materials and bolt list.
- DSTV, DXF, KISS and XML files.
- 3D models as Tekla BIMSight or IFC for Revit and other BIM softwares.
3D LASER SCANNING:
- 100% Accurate field measurements.
- As-Built collection of structural and MEP components for renovations.
- Progressive project scan data collection for quality control purposes.

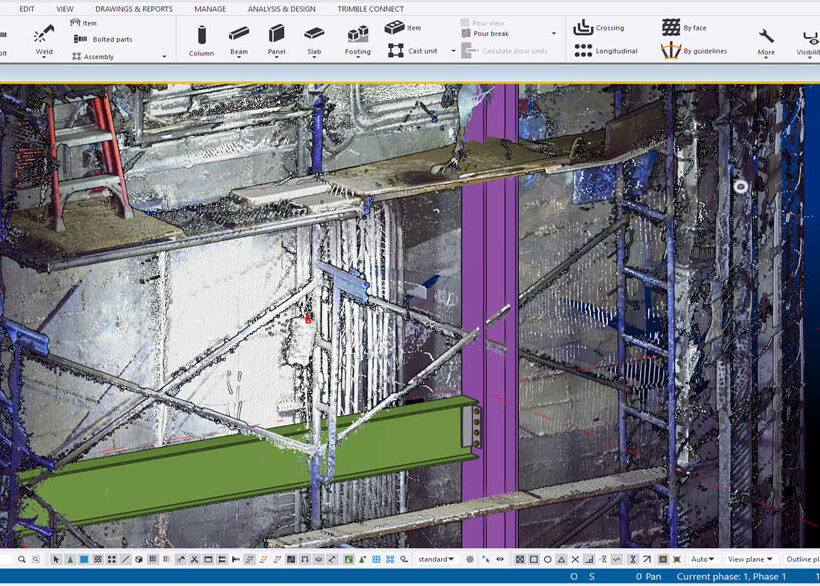

- Point cloud and 3D solid models for coordination.
